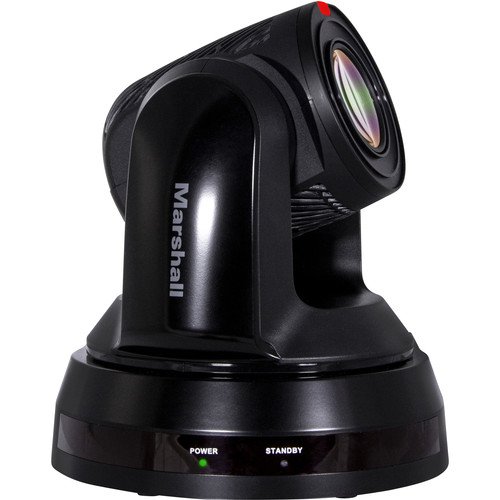

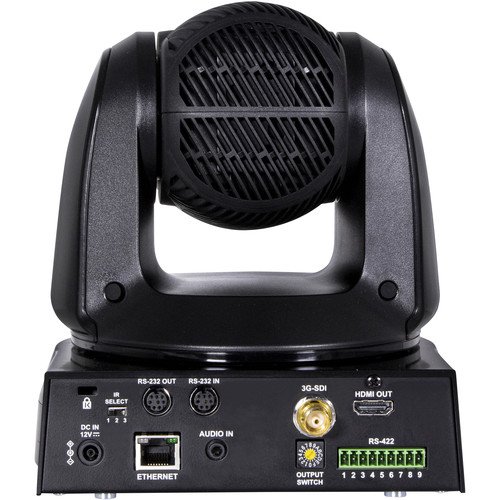

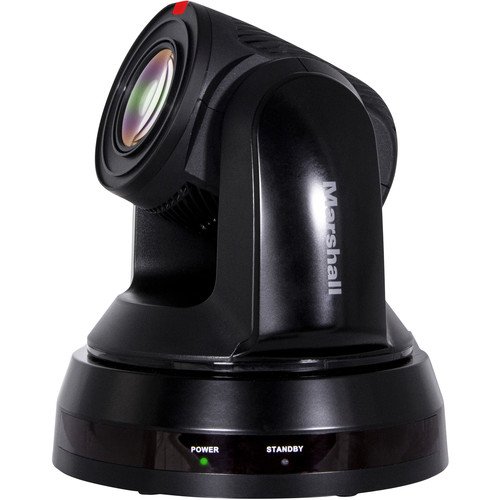

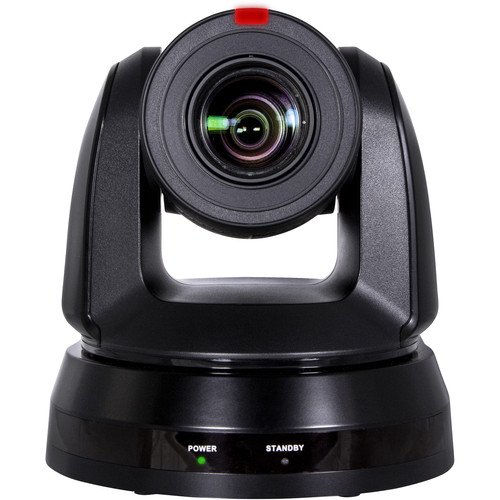

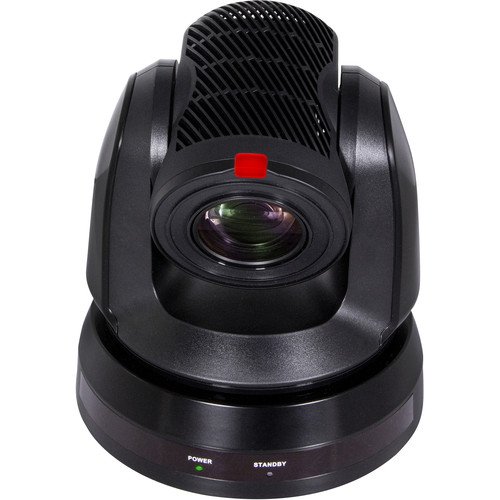

The black CV630-IP Broadcast Pro AV UHD 4K IP PTZ Camera from Marshall Electronics is designed for professional conferencing applications. Its 8MP sensor captures up to 2160p UHD 4K resolution with a lens with 30x optical zoom from 4.6 to 135mm and a 70° angle of view. Connectivity features include 3G/HD-SDI and HDMI outputs and RJ45 Ethernet streaming and RS-232 serial control.
Stream video using H.265 and H.264 compression over IP for high-quality streaming with the RJ45 Ethernet port, and control the unit using IP, RS-232, or RS-422 with Visca, Pelco, and Onvif support. The camera is built with smooth and quiet 340° pan, 120° tilt, and it offers simultaneous PTZ and focus control for advanced transitions.
Key Features
8MP 1/2.5″ sensor
Capture UHD 4K 3840 x 2160p
30x optical zoom
4.6 to 135mm lens
3G/HD-SDI and HDMI outputs
RJ45 Ethernet streaming control, PoE support
Wide 70° angle of view
Simultaneous 4D control for pan, tilt, zoom, and focus
340° horizontal pan, 120° vertical tilt
Mountable on desktop, wall, ceiling
Compatible with most integrated video management systems
Kensington lock port
Video resolution and frame rate select dial
IR remote select
Adjustable white balance, exposure, iris, gamma, black level
Standby LED indicator
In the Box
Marshall Electronics CV630-IP Broadcast Pro AV UHD 4K IP PTZ Camera (Black)
Remote Control
Power Cord
Power Adapter
RS-422 Connector (Removable)
Metal Installation Plate A
Metal Installation Plate B
Set of M3 Screws
1-Year Warranty
