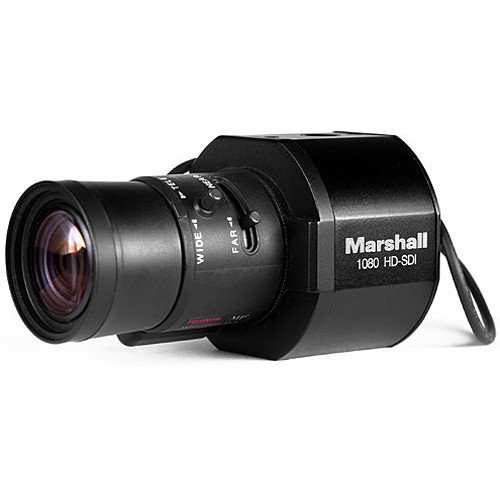

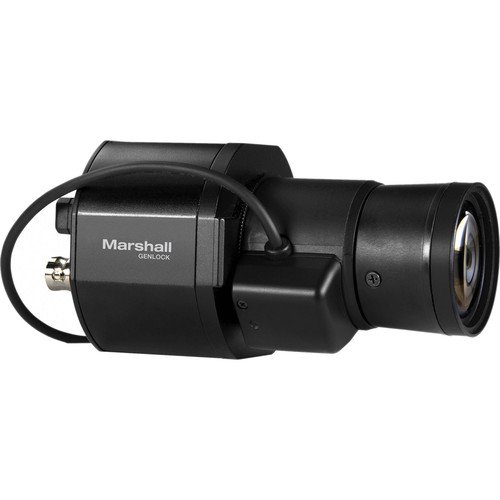

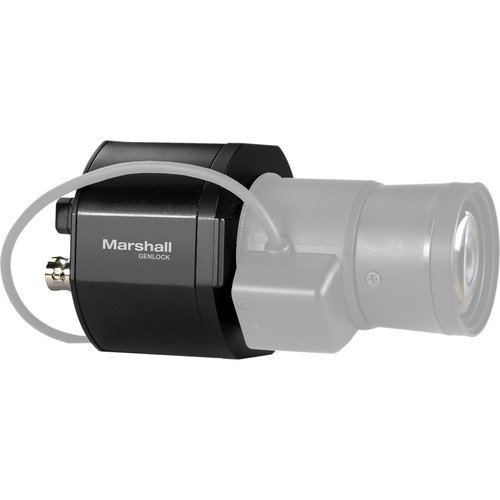

Marshall Electronics CV365-CGB 2.5MP Compact Genlock 3G-SDI / HDMI Camera

Supporting broadcast-quality Full HD video in a versatile, small form factor package, the Marshall CV365-CGB 2.5MP Compact Genlock 3G-SDI / HDMI Camera is suitable for a wide range of applications including reality TV, sports, racing, houses of worship, and surveillance/security. The camera features a 2.5MP 1/3″ CMOS sensor that supports 1080p, 1080i, and 720p video up to 60 fps over 3G/HD-SDI and HDMI outputs. A CS/C mount lens mount gives you field of view flexibility with support for DC-Auto Iris control on compatible lenses. A LEMO-style I/O port and included breakout cable provides additional connectivity, including RS-485, mic input, power input, and a tri-level genlock sync input and output for multi-camera shoots. The camera can be setup to automatically adjust to the resolution and frame rate of sync source, so long as it is supported by the camera.

With a minimum illumination of 0.2 lux in color or 0.1 lux in B&W mode, the camera can function as a security camera, or be used in teleconferencing in low light situations. Its surveillance chops are further bolstered by the presence of features such as back light compensation, motion detection, and privacy masking. Menu settings are available via an OSD that is actuated by a button on the back of the camera. The breakout cable includes an integrated joystick that allows you to navigate the OSD, with navigation buttons also on present on the back of the camera.

Features
2.5MP 1/3″ CMOS Sensor
CS/C lens mount and DC-Auto Iris control port
3G/HD-SDI and HDMI outputs
Supports 1080p, 1080i, and 720p resolutions up to 60 fps
Genlock tri-level sync at camera level to ensure clean switching between cameras; Sync in 3G-SDI (1080p 59.94/50/60) and HD-SDI (1080i 59.94/50/60 and 1280x720p 59.94/50/60)
Camera will adjust to resolution and frame rate of sync source
LEMO-style I/O breakout cable: Sync-IN, Sync-OUT, RS-485 (Visca/Pelco), 12V power input connector, and TRS mic input with 2.5V power
0.2 lux (Day Color), 0.1 lux (Night B/W), 0.005Lux (DSS On)
Optical multi-coated IR cut filter
WDR function adjusts automatically to bright and dark areas within FOV
Back light compensation
3D noise reduction
Motion detection and privacy mask
OSD menu joystick on breakout cable
Free downloadable software to control camera settings via RS-485 (requires separately available USB to RS-485 converter)
Stepped (red/blue) gain control, gamma, shutter, brightness
