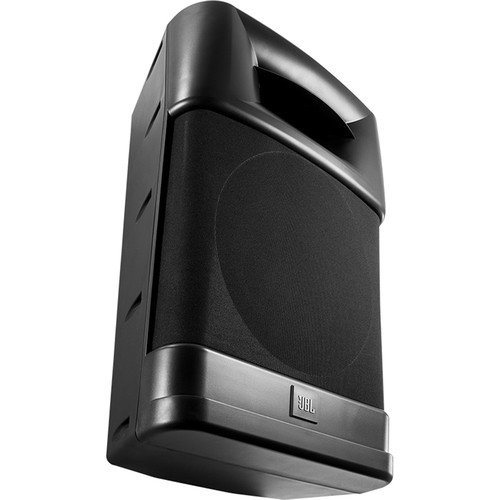

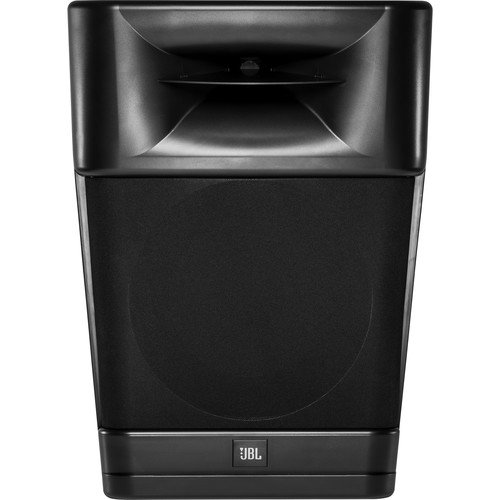

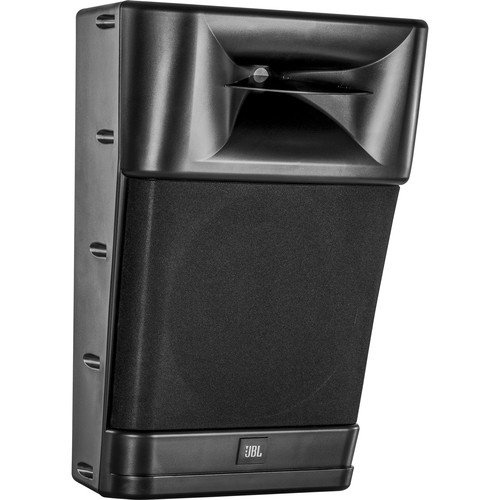

The pair of JBL 9310 2-Way Passive High-Power Cinema Surround Loudspeakers feature a 1″ HF horn and 10″ woofer. The horn offers studio-quality performance with pattern control tailored to multiplex theater geometries. The loudspeaker uses a wave shaping vane which distributes acoustic energy in proper proportion to the room. This technique provides a wavefront that is sculpted to the room geometry and provides very precise mapping capability. This shaping also allows the loudspeaker to orient to the wall naturally while directing the acoustic energy to the seats.

By mounting the surrounds at a 15° angle toward the screen, the hot spots are eliminated and overall coverage maps are dramatically improved, and those seats in close proximity to a surround have a much improved experience. The 9310 system provides 3 mounting planes for easy installation in any geometry.

350W power handling capability
High frequency horn features JBL Image Control technology and Wave Shaping Vane for precise pattern control
Three separate horizontal mounting planes at 15° angles for specific positioning to improve coverage

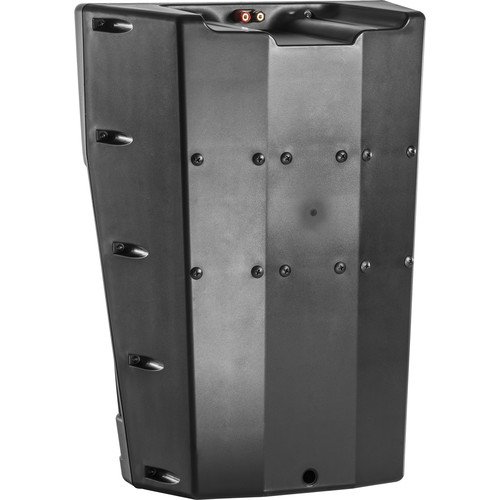

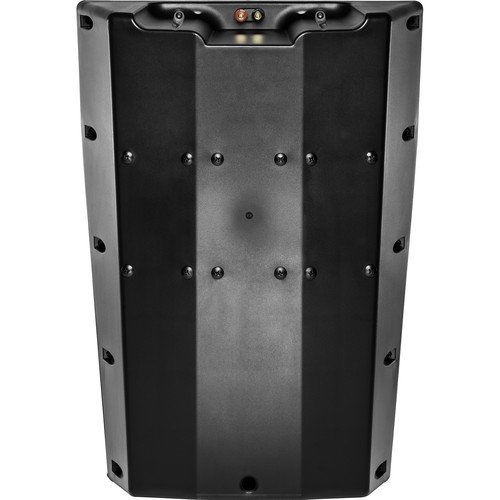

Input terminals on top of cabinet for easy access
Lightweight, rigid molded enclosure
Uniform asymmetric 60° vertical coverage and 110° horizontal coverage

In the Box
JBL 9310 2-Way Passive High-Power Cinema Surround Loudspeaker (Pair)
5-Year Warranty
