360Precision LTD Facebook 360Surround Camera Bundle with PC Hardware

360Precision LTD’s Facebook 360Surround Camera Bundle includes all the camera hardware and a portable PC that you need to put together a high-quality spherical video platform for Facebook’s Surround360 open-source system. 17 cameras with wide-angle and fisheye lenses provide full spherical coverage, with the option to render for stereoscopic images in VR applications. The camera connects to the included “Camputer” PC, which is set up to Facebook’s specifications. An 8-bay SAS RAID tower is included and pre-stocked with eight 1TB SSDs for storage. High-speed PCI-E connections are made with included fiber-optic links, ensuring fast data transfers.

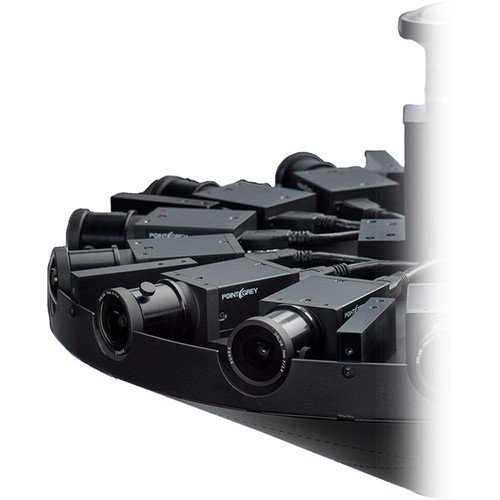

Industrial Point Grey Cameras
The Grasshopper3 camera line combines the benefits of a global shutter with the ubiquity and data throughput of USB 3.0. Capture resolutions of up to 2048×2048 per camera, at up to 90 fps, are possible.

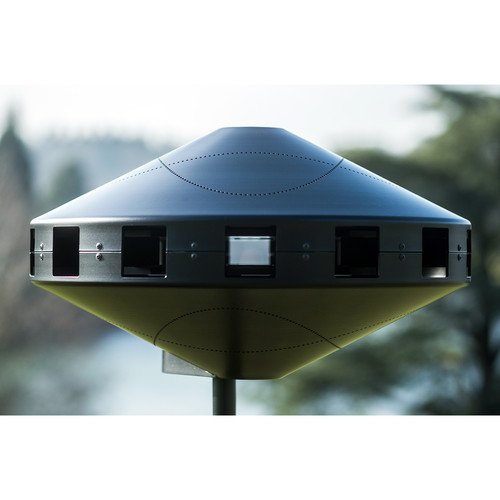

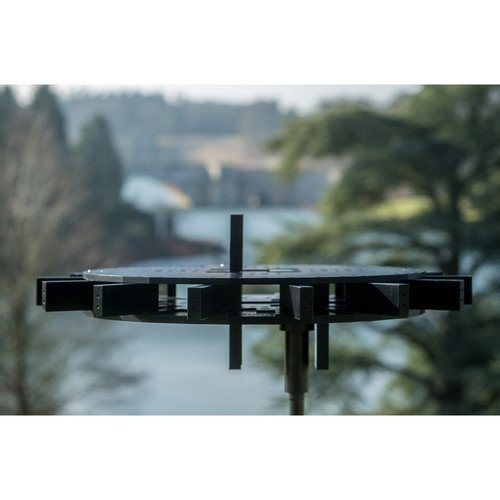

Rugged CNC Aluminum Case
The included case encloses and protects the internal electronics. The external chassis is precision-CNC-machined and powder-coated for durability, while the internal plates and components are hard-anodized black, minimizing internal reflections.
Machine Vision Lenses
14 wide-angle Sunex lenses are provided for the horizon-facing cameras as are 3 Fujinon fisheye lenses for the sky and ground-facing cameras.
Stitched Stereo Output
The free Facebook stitching/render software minimizes post production whilst providing high-quality stereo output.

In the Box
360Precision LTD Facebook 360Surround Camera Bundle with PC Hardware
360Precision LTD Facebook 360Surround Camera Case
17 x Point Grey Grasshopper3 Camera Heads
14 x Sunex Wide-Angle Lenses
3 x Fujinon Fisheye Lenses
“Camputer” Rugged Computer
PCI-Express Expansion Box
8-Bay 12G SAS RAID Tower
8 x 1TB SSDs
2 x External 4x HD Mini-SAS Cable
PCI-Express 3.0 x8 Active Optical Cable
2 x PCI-Express 3.0 x8 Cable Adapter
5 x USB 3.0 Expansion Card
PCI-Express 3.0 x8 SAS RAID Adapter
17 x USB Cables
17 x GPIO Cables
5 x Velcro Straps
Assembly Tools
