336 x 252 Thermal Resolution
T119 Thermal Lens
7.5 to 13.5µm IR Sensitivity Range
25° Horizontal Field of View

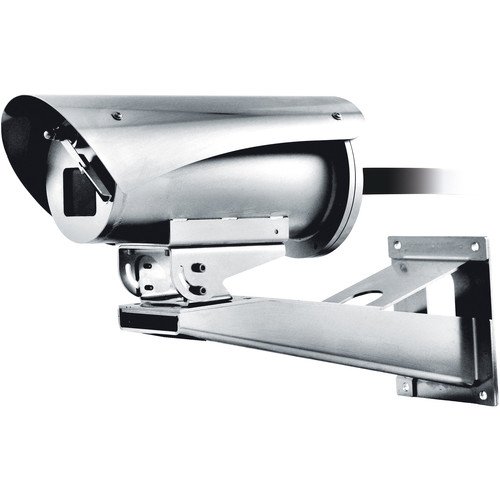

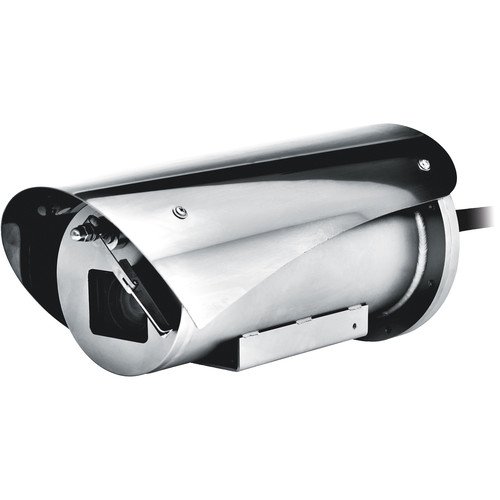

The MAXIMUS MXV 550 TVL Outdoor Explosion-Proof Camera from Videotec features a 1/4″ EXView HAD CCD sensor and 3.4-122.4mm varifocal lens that offers up to 36x optical zoom. The camera can be operated via a 12 to 24 VDC/VAC power source. It comes with an integrated wiper, analog control, and a 13′ cable tail.
The camera is suitable for video surveillance and process control in harsh settings where the presence of gases or flammable dust can create a potentially explosive environment.
The camera housing is constructed from AISI316L stainless steel and resistant to corrosion. It supports plug-and-play installation with multipolar wiring that helps avoid complex electrical connections. The camera can be operated in temperature ranges from 76 to 149°F. Enclosed in an IP66/IP68 -rated housing, the camera can be used in harsh environments and immersed in water to a depth of 16′ for up to 2 hours. Moreover, the IP69 rating allows the camera to be cleaned with high-pressure and high-temperature water jets.
Certified for use in Zones 1 and 2, IIC T5, and T6 Group (Gas) and in Zones 21 and 22, IIIC T100°C, and T85°C Group (Dust)
AISI 316L stainless steel construction
Shot peened and electro-polished surfaces
Resolution up to 550 TV lines
Image stabilizer (Stable Zoom Mode)
Day / night (Auto ICR)
36x optical zoom lens with autofocus
One alarm input and one relay output
13’ cable tail
Integrated wiper and sunshield
Shutter time increases automatically to improve night-time surveillance
Silicone O-ring seals
