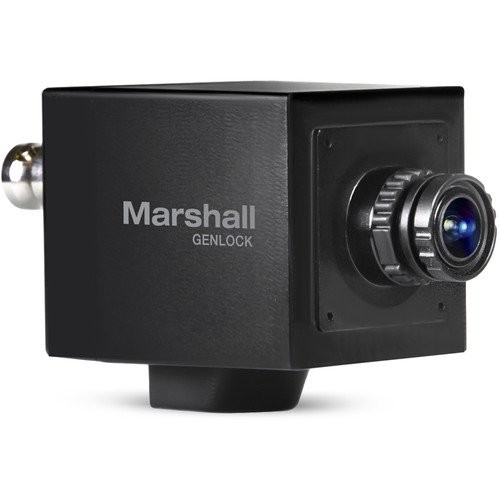

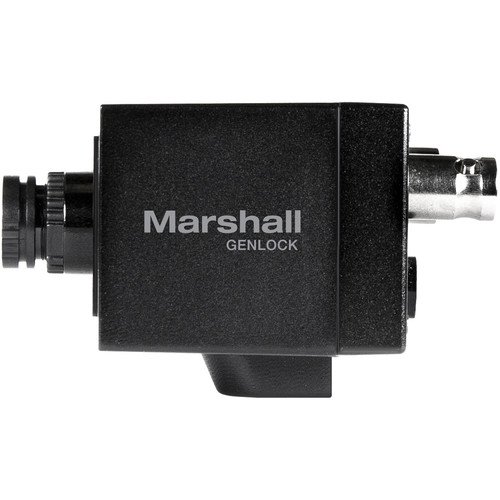

Marshall Electronics 2.5MP 3G-SDI/HDMI Compact Broadcast Camera with Interchangeable 3.7mm Lens

Suitable for use in broadcast situations as well as reality TV, sports, houses of worship, and security applications, the Marshall 2.5MP 3G-SDI/HDMI Compact Broadcast Camera with Interchangeable 3.7mm Lens provides HD video in a small form factor. Supporting Tri-Level sync, the camera easily integrates into a broadcast studio workflow for seamless switching without requiring a time base corrector or suffering any frame processing delay. The camera features a 1/3″ CMOS sensor and includes an interchangeable 3.7mm lens in an M12 mount. HD video is captured at 1080p and 720p at 60, 59.94, 50, 30, 29.97, and 25 fps. It supports 1080i at 59.94 and 50, outputting via SDI or HDMI. The camera supports sync with 3G-SDI video, as well as Full HD.

With a minimum illumination of 0.2 lux in color or 0.1 lux in B&W mode, the camera can function as a security camera, or be used in teleconferencing in low light situations. It features Digital Wide Dynamic Range, motion detection, and privacy masking which make this camera a flexible option for capturing intrusions into sensitive areas. And the auto white balance function helps deliver normal looking video under changing conditions. Menu settings are available via an OSD that is actuated by a button on the back of the camera. The power cable includes an integrated joystick that allows you to navigate the OSD. It also integrates a TRS connector for audio input and an RS-485 connector for remote control.

General Overview
2.5MP, 1/3″ CMOS sensor
1080p Video at up to 59.94 fps
720p Video at up to 59.94 fps
0.2 Lux in Color, 0.1 lux in B&W
Connects to a TV or DVR via a BNC connection
Die cast aluminum camera housing protects the camera from external impacts

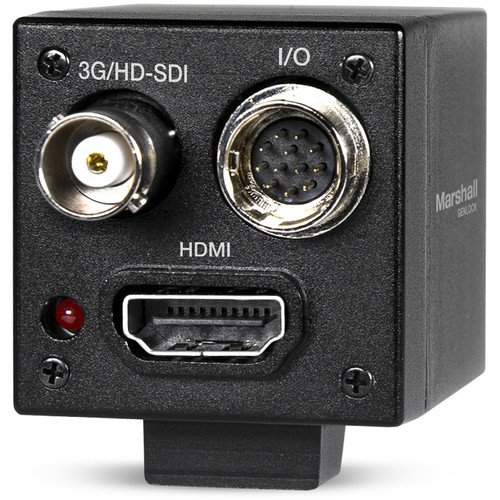

The camera features one 3G/HD-SDI and one HDMI output connector
Tri-Level sync genlock is supported at 1920 x 1080p60, 59.94, and 50 fps (3G-SDI), as well as 1920 x 1080i60, 59.94, 50, 1920 x 1080p30, 29.97, 25, and 1280 x 720p60, 59.94, 50
Display Parameters
This camera’s management interface features Wide Dynamic Range technology to compensate for issues of extreme backlighting. It also gives users the ability to set color, saturation, brightness, white balance, and other imaging display parameters.
Auto and manual white balance
Auto electronic shutter speed of 1/30 to 1/30,000 sec
Automatic gain control
Sync
The Tri-Level Sync connector is built into the included breakout cable. Tri-Level Sync compatibility helps the camera work seamlessly in a studio environment.
OSD Joystick
The camera incorporates a LEMO connector and includes a breakout cable that provides a joystick for OSD navigation, an RS-485 connector, a Tri-Level sync connector, a TRS connector for audio input, as well as a power connector for the included power supply.
