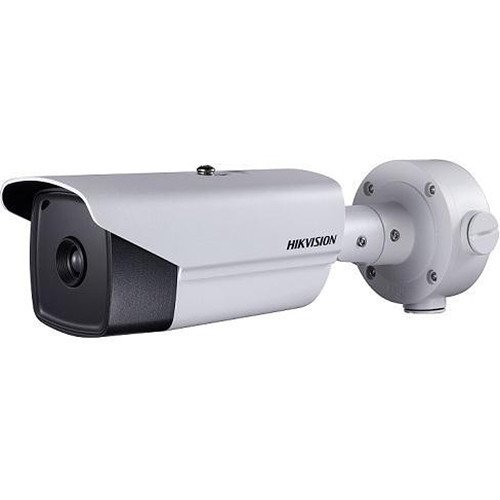

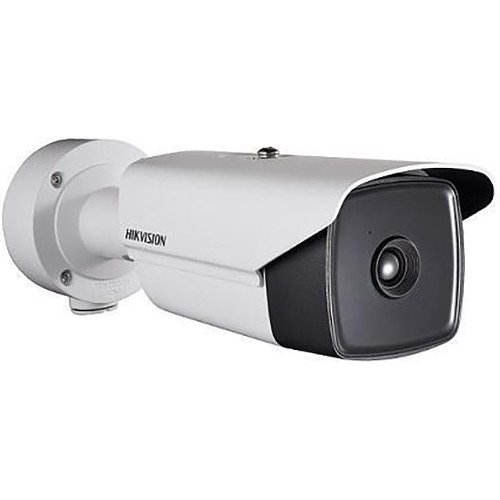

Hikvision DS-2TD2136T Outdoor Thermal Network Bullet Camera with 15mm Lens & Heater

The DS-2TD2136T Outdoor Thermal Network Bullet Camera with 15mm Lens & Heater from Hikvision uses a vanadium oxide uncooled focal plane array to capture 384 x 288 resolution video at 50 fps. The camera’s 15mm fixed lens provides a 24.55 x 18.54° field of view. Smart features include line crossing, intrusion, region entrance/exit with human and vehicle filtering, temperature exception, and advanced fire detection. Two-way audio communication is possible thanks to an audio input and output. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 64GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

This thermal bullet camera is equipped with a built-in heater. It complies with ONVIF profiles G & S, making it compatible with a wide range of surveillance devices. The camera’s housing is IP66 rated for outdoor use.

Smart features include line crossing, intrusion, region entrance/exit with human and vehicle filtering, temperature exception, and advanced fire detection
NETD <40 mK
Adaptive automatic gain control (AGC), 3D-DNR, and Digital Detail Enhancement (DDE)
H.265+, H.264+, H.265, H.264, and MJPEG video compressions
Triple streaming
1.13 MRAD instantaneous field of view
14 adjustable pseudo colors available
Up to 32 users with 3 host levels (admin, operator, and user)
Up to 20 channels in simultaneous live view
1 x 100M self-adaptive RJ45 Ethernet
1 x BNC video output
Audio input and output
2 x alarm inputs and 2 x alarm outputs
Compatible with Internet Explorer 7 or higher, Chrome 18 or higher, Firefox 5.0 or higher, Safari 5.02 or higher, multiple languages, iOS, Android, and iVMS-4200
Conduit base included
CE, FCC, and cUL certified
TVS 6000V lightning, surge, and transient voltage protection
DRI Range (Human & Vehicle)
Detection: Human (1447′), Vehicle (4439′)
Recognition: Human (361′), Vehicle (1109′)
Identification: Human (180′), Vehicle (554′)
Smart Functions Range
Optimized to Johnson Criteria (Recognition): Human (361′), Vehicle (1109′)
Temperature Exception (Accuracy at 5 x 5 Pixels): Maximum 1152′ (6.6 x 6.6′ Size of Point), 581′ (3.3 x 3.3′ Size of Point)
Advanced Fire Detection (Accuracy at 2 x 2 Pixels): Maximum 2894′ (6.6 x 6.6′ Size of Point), 1447′ (3.3 x 3.3′ Size of Point)

In the Box
Hikvision DS-2TD2136T Outdoor Thermal Network Bullet Camera with 15mm Lens & Heater
Conduit Base
3-Year Warranty
