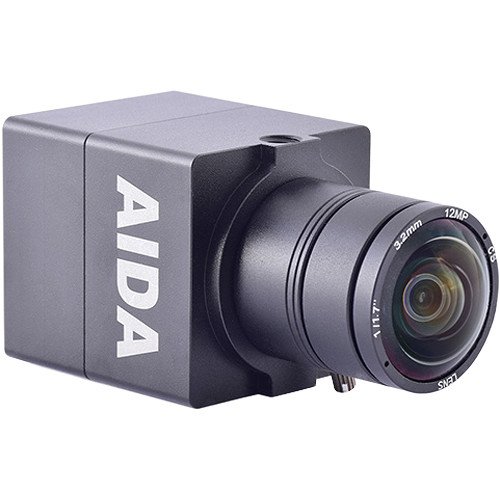

AIDA Imaging Micro UHD 4K HDMI POV Camera with TRS Stereo Audio Input

The AIDA Imaging UHD-100A Micro UHD 4K HDMI POV Camera with TRS Stereo Audio Input is an ultracompact camera suitable for web-conferencing, sports, auto racing, surveillance, medical, broadcasting, live production, education, house of worship, and other applications. Measuring approximately 1.5″ wide by 1.5″ tall and 3″ deep, the camera can fit in a variety of spaces where a small footprint is advantageous such as a dashcam in a race car or discretely in the corner of a surgical room. The camera captures UHD 4K resolution video at up to 30 fps and HD at up to 60 fps. It features a C/CS mount for mounting interchangeable lenses and includes a 3.2mm lens with iris control.

The camera has an HDMI output that allows you to connect it to switchers, monitors, recorders, and other devices for viewing and/or recording the image. An included breakout cable provides inputs for power, RS-485 control, and mic/line level audio, which is embedded in the HDMI output. The cable also has an integrated OSD controller on it. This allows you to select and adjust the built-in image tools such as 2D/3D noise reduction, digital slow shutter, black level compensation, flicker detection as well as selecting the exposure mode. The camera body includes both a power and HDMI indicators allowing you to confirm its operation at a glance. Two 1/4″-20 threaded mounting holes, one on the bottom and one on the top allow you options when mounting the camera.

Functions
White Balance
AWB/AE/AF

Exposure

Full Auto
Bright
Shutter Priority
Iris Priority
Manual


WDR
DIS (Digital Image Stabilization)
2D/3D Noise Reduction
Digital Slow Shutter
Black Level Compensation
Flicker Detection

Remote Control
OSD can be remotely controlled by PTZ camera controller or by CCS-USB and software
